Webhooks

  • PDF

Article summary

Webhooks integrated with Scalefusion, allows for real-time communication with external systems or applications. They enable Scalefusion to send notifications to external systems when certain events occur, such as when a device is enrolled, unenrolled, or has a configuration change.

Unlike Developer APIs where customers pull this kind of information by implementing their backend servers, we proactively notify them of such events with the help of Webhooks. As a result, Webhooks provides them with a push mechanism rather than only a pull mechanism.

The document below describes how Webhooks can be configured on Scalefusion Dashboard and the events supported.

How it works?

Scalefusion sends a POST request to a pre-set URL with event data, allowing external systems to react in real-time, enabling automation and integration. To receive data from a webhook, the URL must be public and owned by the receiving system. It must be set up as a webhook endpoint to ensure the system can receive notifications.

For example, Device Enrollment webhook, once configured will notify their systems of a device being enrolled whenever it is enrolled.

Pre-Requisites

  1. You should be subscribed to Enterprise 2023 plan.
  2. Devices should be enrolled with Scalefusion.
  3. The payload URL endpoint (URL of the server that will receive the webhook POST requests) should be configured.
  4. Secret key should be generated that will used to sign the request body that Scalefusion sends.
  5. You should have Write permissions for Integrations.

Configure Webhooks in Scalefusion Dashboard

Step 1: Activate Webhooks

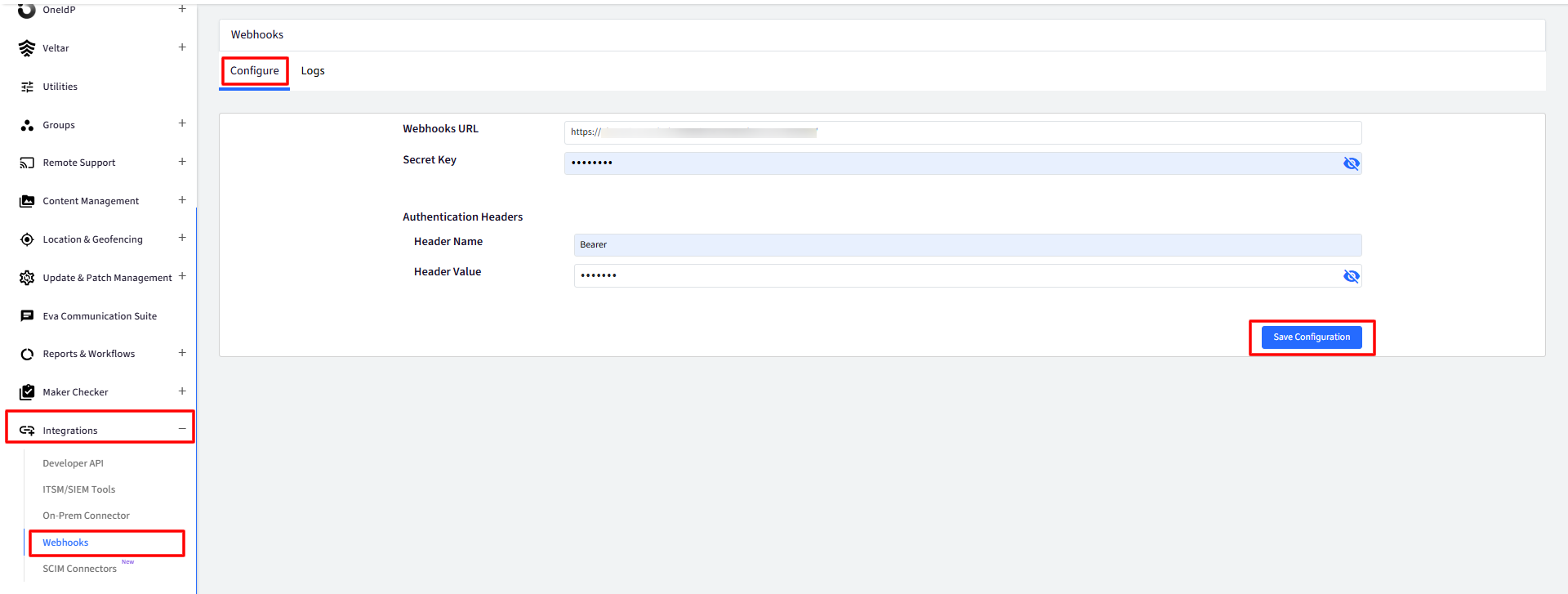

  1. Navigate to Integrations > Webhooks
  2. Under Configure tab, enter the following:
    1. Webhooks URL: URL of the endpoint server
    2. Secret Key: This is to ensure POST requests sent to your payload URL are coming from Scalefusion
    3. Click on Save Configuration.

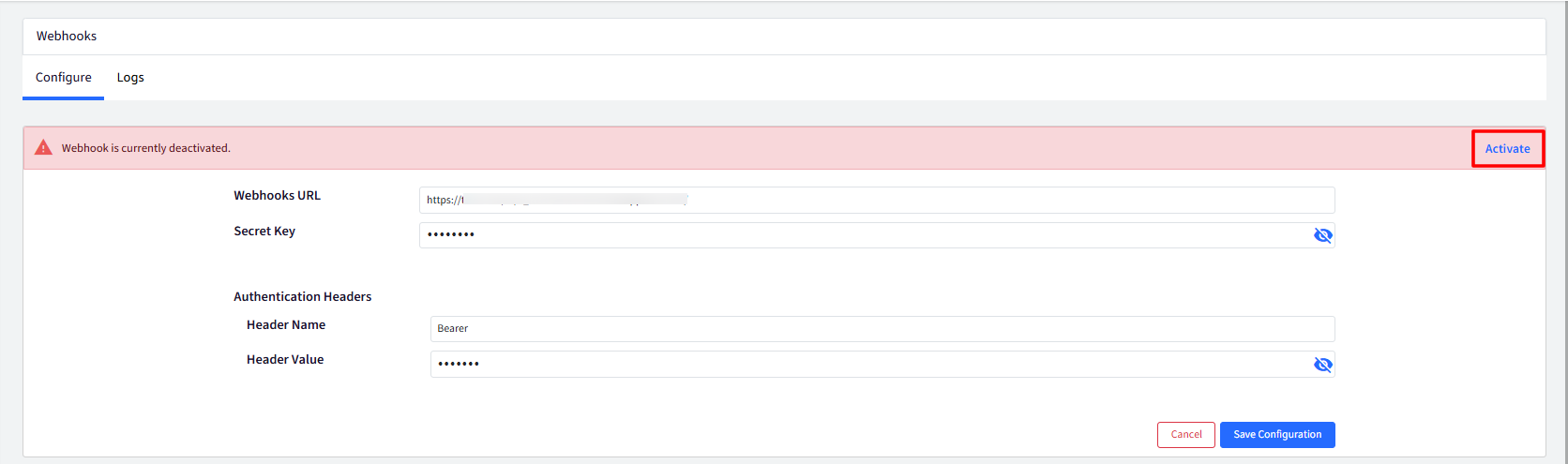

  3. The configuration will be created. Click on Activate to activate configuration.

Step 2: Subscribe Events

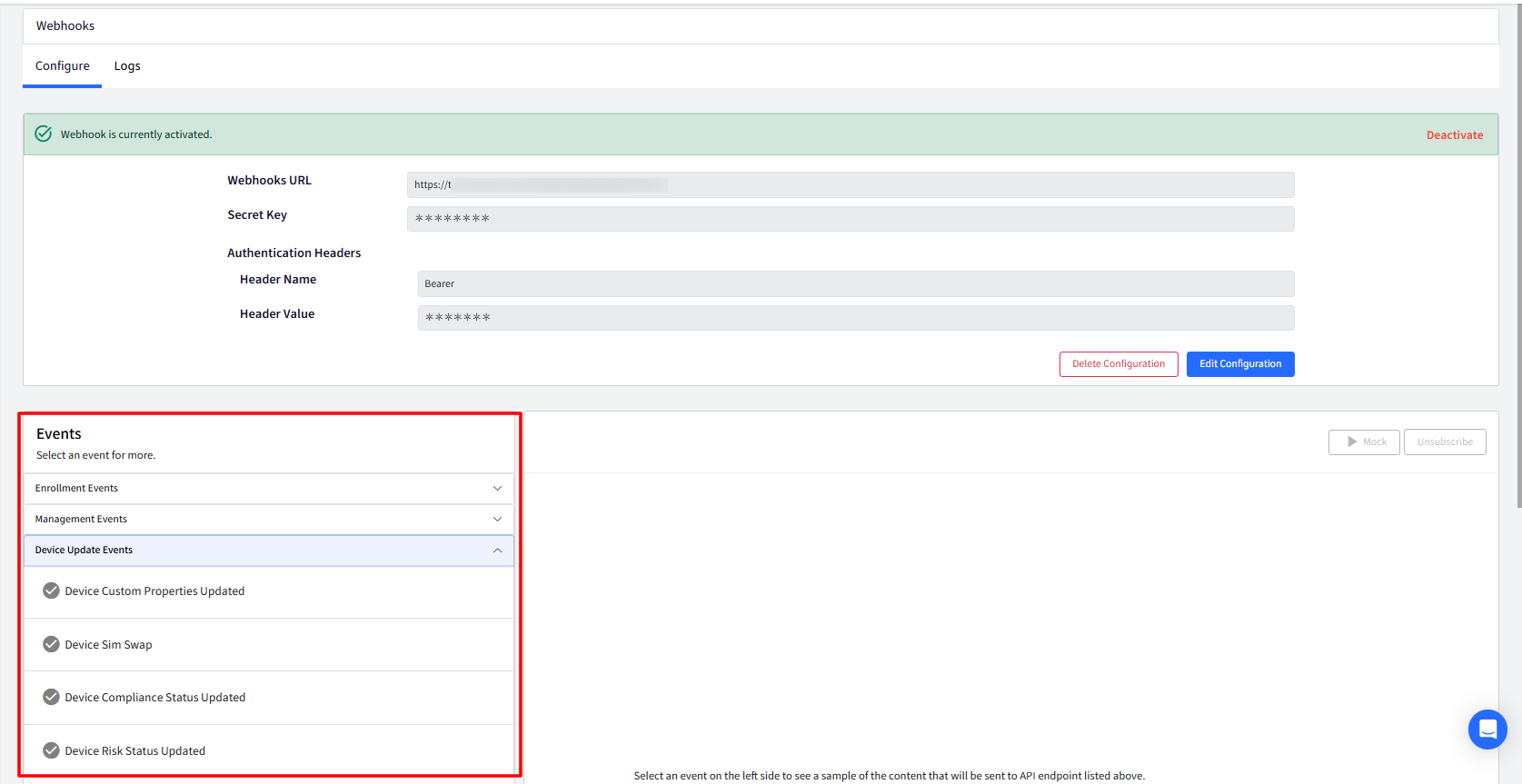

  1. Once a configuration is activated, the events will be listed on the left. The events are classified into three categories, viz.
    1. Enrollment Events
    2. Management Events
    3. Device Update Events
      The events along with platforms supported, are listed in the Events supported section below
  2. To trigger a webhook, you need to subscribe to the event.
    At least one device should be enrolled before subscribing to an event

  3. Click on an event to select it. The sample payload for the selected event is displayed on the right.

    The application/json is the default webhook content type supported by Scalefusion currently. You will receive the JSON payload as the body of the POST request.
  4. Mock Event: To test the endpoint response and code, you can trigger a mock webhook before finally subscribing for a particular event, by clicking on the Mock button. Please note that mock events are not logged in webhooks event logs. The following type of response pops up on screen.
  5. Click on Subscribe button
  6. Notice the event is marked by a green check in front of it indicating that it has been subscribed.
  7. At any point of time, you can unsubscribe the event by clicking on the Unsubscribe button if you don’t want to trigger a webhook.

Validating Payload

When you set a shared secret, Scalefusion uses it to create a hash signature of the payload. This hash signature is included with the headers of each request as a X-SF-Signature header to your payload URL. The following section describes how you can validate the payload to ensure that it is coming from Scalefusion

Note: This is just a sample code. Your language or technology stack of choice may differ from the example provided below.

# app/controllers/webhooks_controller.rb
class WebhooksController < ApplicationController
# Skip CSRF protection for this controller since it's receiving external webhooks.
 protect_from_forgery with: :null_session

 # This filter is executed before the 'payload' action to verify the payload signature.
before_action :verify_signature, only: :payload

  # Handle incoming webhook payload.
  def payload
   # Rewind the request body to read it again.
   request.body.rewind
   # Read the complete request body.
   body = request.body.read
   # Parse the JSON payload.
   json = JSON.parse(body)
   puts "Scalefusion Webhook Payload: #{json.inspect}"
   # Respond with HTTP 200 OK status.
   head :ok
  end

 private

 def verify_signature
# note ENV[SCALEFUSION_SECRET_KEY] it should return a secret key which is configured during webhooks configuration
signature = Utils::Security.hmac_256(ENV[SCALEFUSION_SECRET_KEY], request.body.read)

unless Rack::Utils.secure_compare( request.env['HTTP_X_SF_Signature'], signature)
render plain: 'Signatures mismatch!!', status: 406
end
end
end

# config/routes.rb
post '/payload', to: 'webhooks#payload'
Using the == operator for signature comparison is not recommended; instead, it is preferable to use a method that performs "constant time" string comparison, as this helps mitigate certain timing attacks.

Step 3: View Logs


On subscribing to events, webhooks will start triggering. The user can view all the webhook invocations made for the subscribed events, in the Logs section. Logs show following:

  1. Summary: Displays Summary of following:
    1. Total Events: Total number of webhook events invoked so far.
    2. Total Success Events: Total events for which invocation of webhooks returned a success response.
    3. Total Failed Events: Total events for which invocation of webhooks returned a failed response. There can be many reasons for failure of an event like SSL certificate expired or wrong endpoint / credentials configured or error in customer side code etc.
  2. Filters: Following filters can be applied:
    1. Start Date and End Date: This will display all the events triggered during the given start date and end date
    2. Response Code: Filters events with the specified response code
    3. Request ID: This represents the Unique UUID sent as part of webhook invocation. Event can be filtered based on Request ID.
  3. Events:The Events table displays all the events sent showing following columns:
    1. Event Type: The event for which the webhook was invoked.
    2. Request ID: The unique UUID associated with this request
    3. Response Code: The response code received after invocation of webhook
    4. Date & Time: The timestamp when the webhook was invoked for this event.
    5. Request Payload View: Clicking on this icon will display the contents sent in this request, in a pop-up window. This payload can be copied with the copy button.


Events supported

Scalefusion supports following events and platforms on which Webhooks can be invoked:

EventsAndroidiOSmacOSWindowsLinux
Device EnrolledYesYesYesYesYes
Device ActivatedYesNoNoNoNo
Device UnenrolledNoNoYesYesNo
Device DeletedYesYesYesYesYes
Device UnlockedYesYesYesNoYes
Device LockedYesYesYesNoYes
Device LostYesYesNoYesNo
Device FoundYesYesNoYesNo
Device User Signed InYesNoYesYesNo
Device User Signed OutYesNoYesYesNo
Device ShutdownYesYesYesYesYes
Device RebootYesYesYesYesYes
Device Custom Properties UpdatedYesYesYesYesYes
Device Sim SwapYesNoNoNoNo
