Configure Login Screen

  • PDF

Article summary

The login window screen settings are a bunch of configurations that allow you to customize the login screen of your Windows devices. These settings will help you make tweaks like displaying a list of users, setting the appearance of the login window, showing control buttons, and more. Depending upon the configured preferences, the login window appears either when the user logs out of the user account or when you wake up Windows machines from the sleep mode or when you try to access the screen back from the screensaver mode. Using the comprehensive MDM solution from Scalefusion, you can configure these login window settings remotely for your Windows devices.

This article describes settings for configuring login screen.

  1. In Keycard configuration window, navigate to Keycard UI
  2. There are two sections:
    1. Branding
    2. Options


Following are the settings under both sections

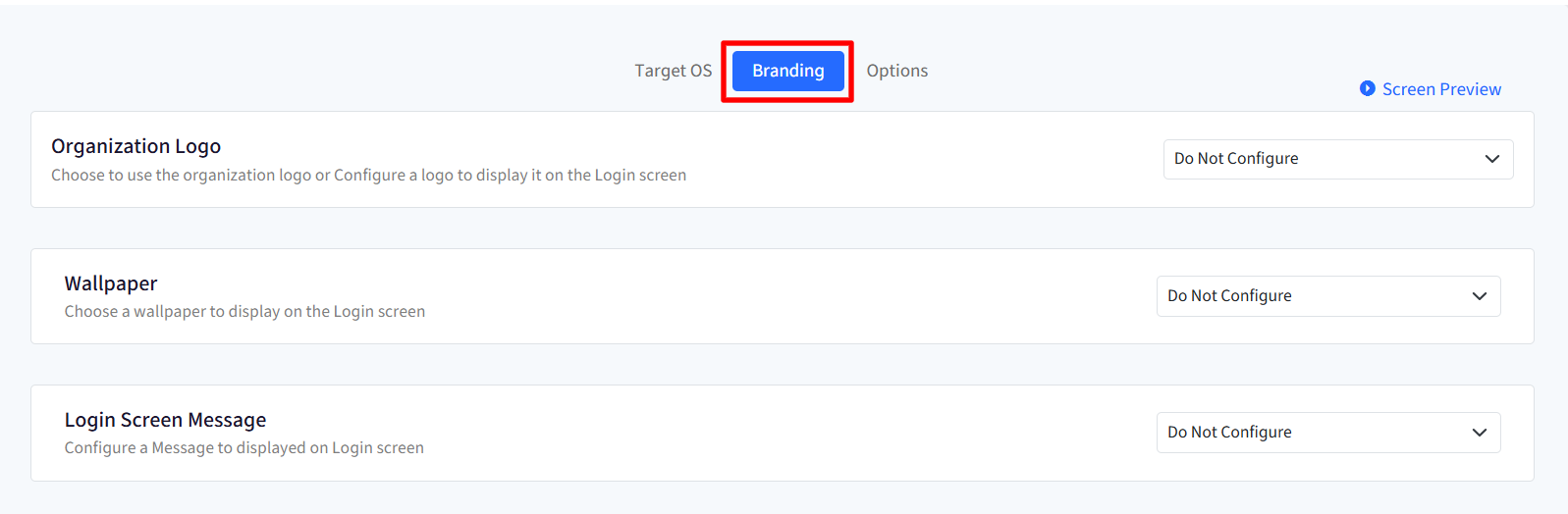

  • Branding: Allows you to configure the appearance of login screen with following settings:
SettingDescription
Organization LogoChoose to use the organization logo or Configure a logo to display it on the Login screen. Following are the options to choose from:
  • Do Not Configure: Displays default Keycard Logo
  • Use Organization Logo: Uses the logo uploaded on the Organization Info screen
  • Configure a custom logo: Upload a custom logo for the login screen with the maximum dimensions 300*300. png, jpg and jpeg file types can be selected.
WallpaperChoose a wallpaper to display on the Login screen. Following are the options to choose from:
  • Do Not Configure: Displays previously set wallpaper
  • Configure a custom Wallpaper: Upload a custom wallpaper which will be displayed on the login screen with the maximum dimensions 3840*2160. png, jpg and jpeg file types can be selected.
Login Screen MessageConfigure a Message to displayed on Login screen. Following are the options to choose from:
  • Do Not Configure: No message will be displayed
  • Configure a Custom message: Configure a message to be displayed on login screen. Enter message in the text area of up to 500 characters. Custom properties are also supported here. Hence you can use placeholders like $device.imei_no or $device.serial_no

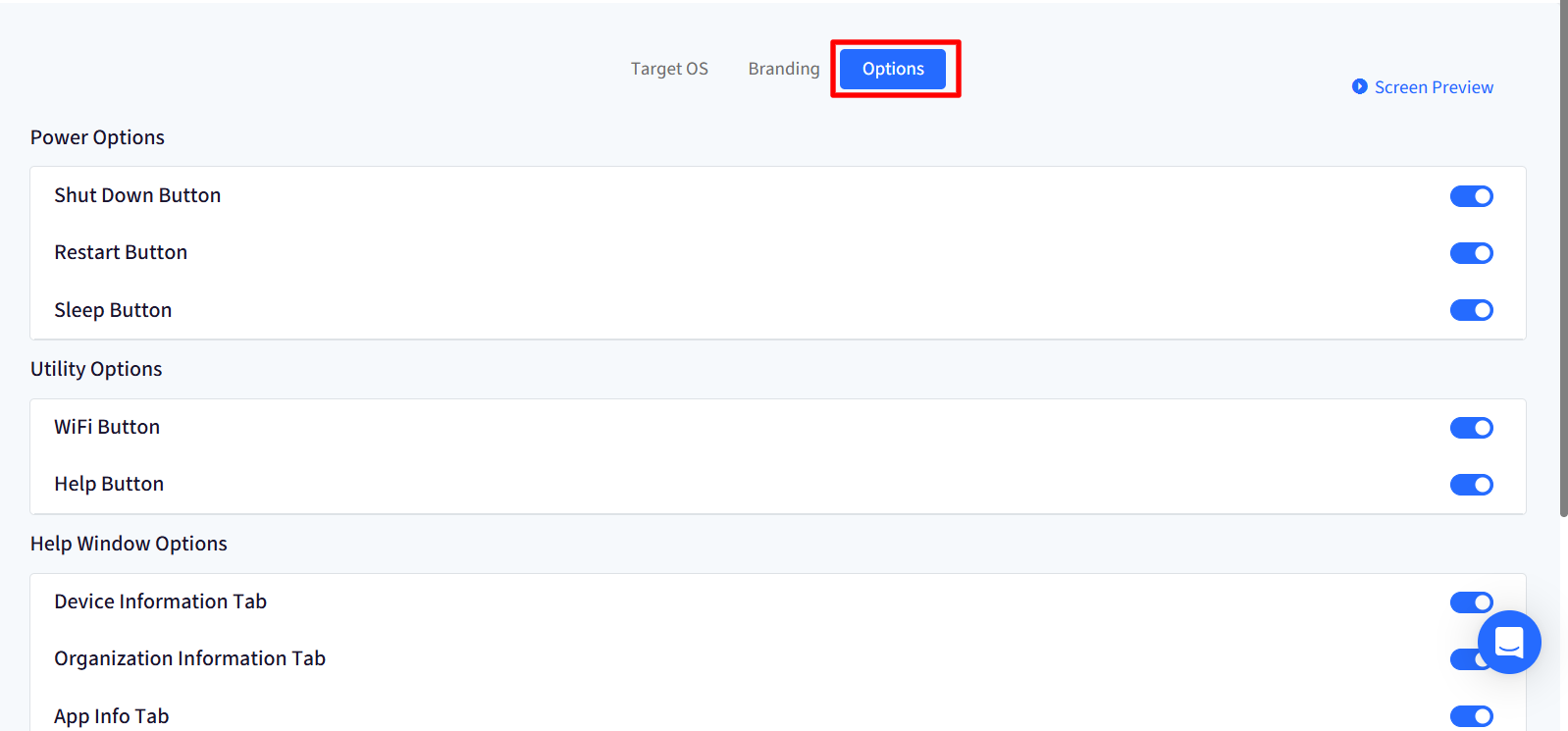

  • Options: Allows you to configure additional controls displayed on login screen. Toggle on the ones you want to display. The options are:
OptionDescription
Power Options
  • Shut Down
  • Restart
  • Sleep
Utility Options
  • Wifi Button
  • Help Button: If this is toggled off, the help window options will be disabled.
Help Window Options
  • Device Information tab
  • Organization Information tab
  • App Info Tab
  • Support tab
Configure Support messageConfigure a support message. If you do not enter anything, a default message is also displayed.


  • Screen Preview

Once you have configured the settings, you can preview it from Dashboard and see how the screen will look like on the end user's device, based on the configurations. Click on Screen Preview link on the top right. This will open a new window.

Help Window options and support message will not be displayed on the preview window. However, they will be visible on the device.


On Device

Following is an example of how the login screen will appear to the user, on saving the Keycard configuration and publishing on the device.
